Descripción
Camera | ||
Image Sensor | 1/2.5" 5MP CMOS Sensor | |
Image Resolution | 5MP | |
Effective Pixels | 5M:2592*1944 4M:2560*1440 | |
TV System | PAL/NTSC | |
Electronic Shutter | 1/25s~1/50,000s , 1/30s~1/60,000s | |
S/N Ratio | ≥50dB | |
Scanning System | Progressive Scan | |
Lens | ||
Focus Length | 3.6mm (2.8mm/6mm Optional) | |
Focus Control | Fixed | |
Lens Type | Fixed | |
Pixels | 5M Pixels | |
Auto Iris Support | NO | |
Night Vision | ||
Infrared LED | 14µ x 18PCS | |
Infrared Distance | 20M | |
IR Status | Under 10 Lux by CDS | |
IR Power On | CDS Auto Control | |
Camera Features | ||
Starlight | / | |
Day/Night | YES | |
OSD Menu Language | YES | |
White Balance | AUTO / MANUAL | |
Gain Control | AUTO | |
Noise Reduction | DNR | |
Picture Adjustment | YES | |
WDR | YES | |
OSD Support | YES | |
UTC | YES | |
Dip Switch | / | |
General | ||
Housing | Metal, IP66 | |
Bracket | NO | |
Dual Voltage | NO | |
IR Cut Filter | YES | |
Heater | NO | |
Audio | / | |
Operation Temperature | -10℃ ~ +50℃ RH95% Max | |
Storage Temperature | -20℃ ~ +60℃ RH95% Max | |
Power Source | DC12V±10%, 550mA | |
Dimension | ¢94.5 x 76(H) mm | |
Weight | 450g |
Ficha técnica

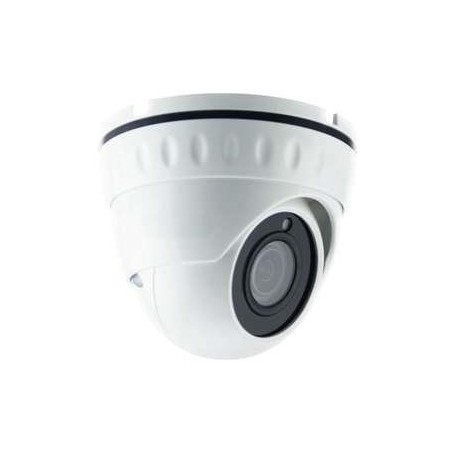

DOMO5MT
